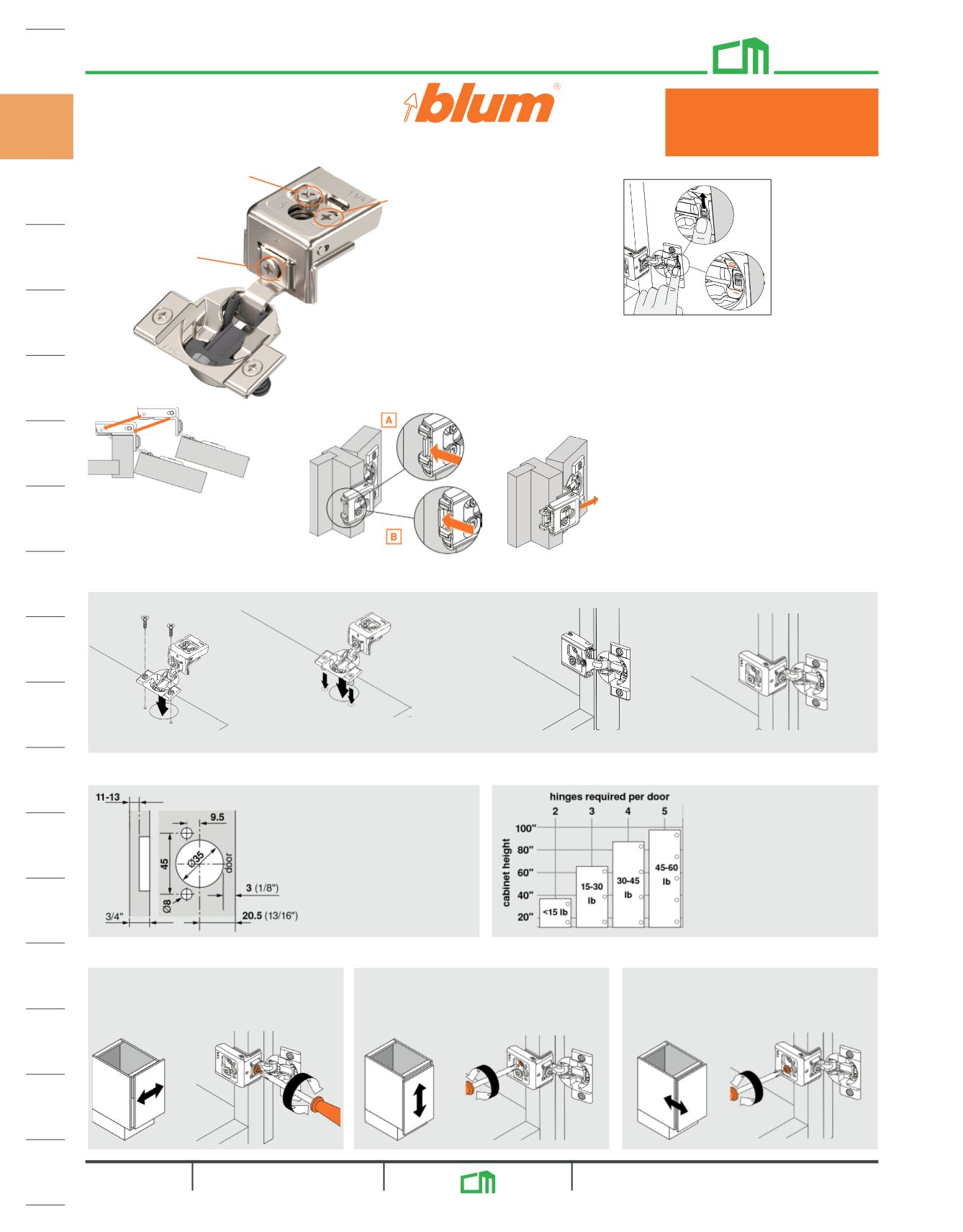

COMPACT CLIP BLUMOTION Soft-Close
Hinge-To-Door Attachment
Hinge Cup Centerpoint
Three-Dimensional Cam Adjustment
Mounting Plate Attachment
Hinges Per Door
BLUMOTION deactivation
For small or light doors, BLUMOTION can be
deactivatedonone hinge. COMPACTCLIP comes
in the activated position, marked with "|". The
deactivated position is marked with "0". Door
must be closed once for the deactivation to
complete.
COMPACT CLIP hinges are
interchangeable with all
current COMPACT BLUMOTION
and COMPACT hinges.
Hinge attachment
Step1:
Slide hinge ontoCLIP
plate until it clips in place.
Hinge removal
Step 1:
Locate CLIP release lever on back of
hinge (A), press down to release (B).
Hinge removal
Step2:
WhileCLIP lever is released, pull forward
on hinge/door to remove from cabinet.
Side adjustment
Height adjustment
Depth adjustment
B30C series
Rotate front cam screw to increase or
decrease door overlay (±1/16")
Rotate this cam screw to increase or
decrease the height (±5/64")
Rotate this cam screw to adjust door gap
(+3/32", -1/32")
wraparound/edge mount
Use #6 wood screws
wraparound
Pre-attached dowels installed with Blum
MINIPRESS or COMPACT insertion ram
Press-in
Screw-on
B31C series
Hinge cup centerpoint and
MINIPRESS setback position
is 20.5 (13/16") for COMPACT
CLIP hinges.
NOTE:
Maximum door thickness 3/4"
This chart can serve as a guide for
determining thenumber of hinges
per door. Note that door weight
can also determine the number
of hinges required.
Important:
Distance between the top and
bottom hinges must be greater
than the width of the door.
Cam height adjustment
Cam side to side
adjustment
Cam depth
adjustment
Allows for maximum adjustment
range without centering in an
elongated hole.
3-way adjustment with
markings stamped on the
hinge near corresponding
screw head.
