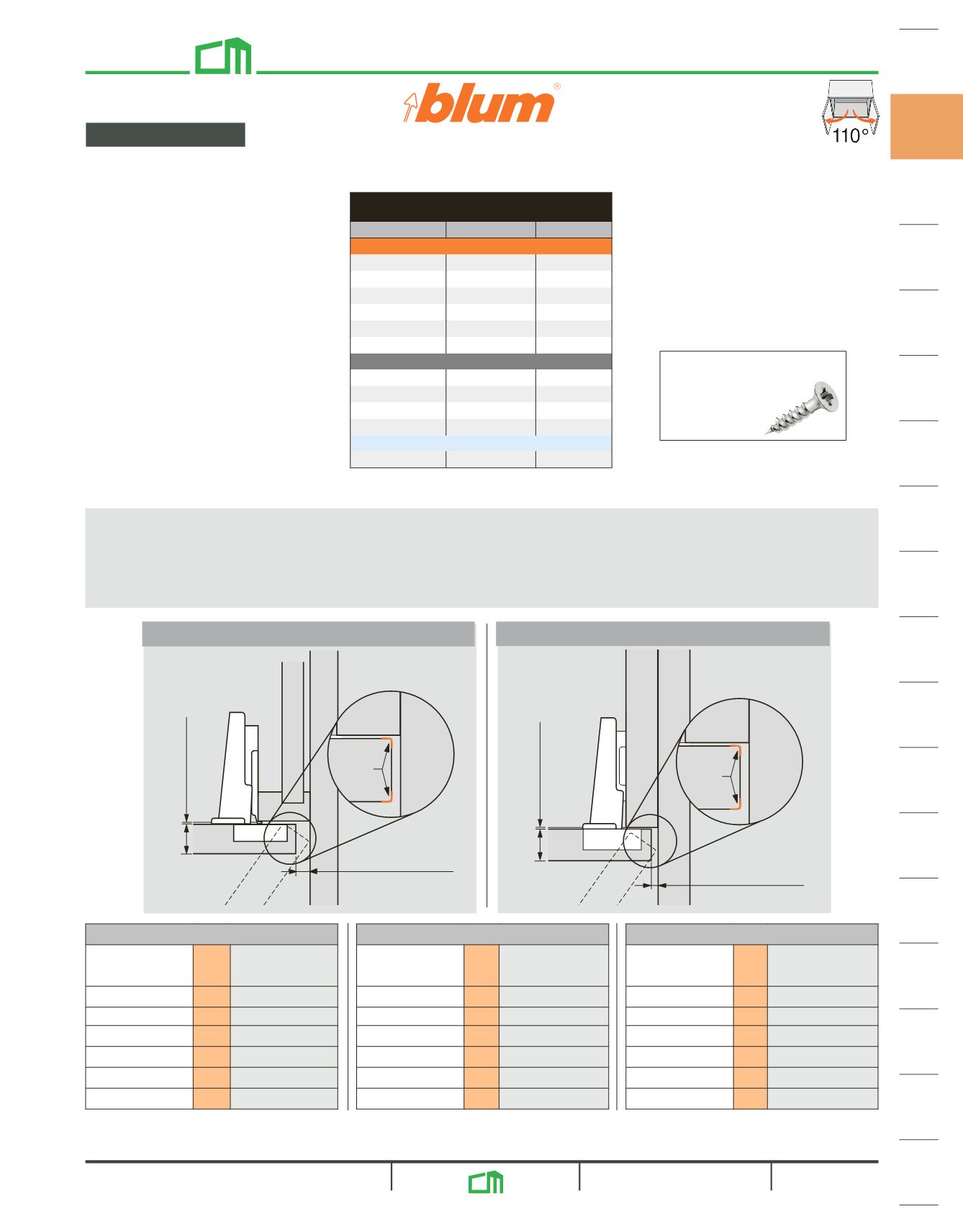

T
Minimum reveal
T
1 rad
(1/32" )
Minimum gap Minimum gap
Frameless Application Frame Application
Minimum reveal T
reveal
1 rad
(1/32")
Minimum gap
110°+ Hinges - Max. Door Thickness 1"
For larger overlays up to 22 mm (7/8")
7/8" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door
1.8 3 1.5
1.7 4 1.5
1.7 4.5* 1.5
1.7 5 1.5
1.6 6 1.5
1.6 7 1.5
3/4" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door
1.0 3 1.5
1.0 4 1.5
.9 4.5* 1.5
.9 5 1.5
.9 6 1.5
.9 7 1.5
* 4.5 mm bore distance for use with 110°+ hinge
** Factory setting is 1.5, may require adjustment
1" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door
4.3 3 1.5
3.8 4 1.5
3.6 4.5* 2.0
3.4 5 2.2
3.2 6 3.2
3.0 7 4.2
Overlay/Partial Overlay Hinges
(Straight Arm)
Item No. Description List Ea. 50
BLUMOTION Soft-Close
Screw-on $8.28
Screw-on $9.16
Press-in $6.98
EXPANDO $7.10
INSERTA $10.04
INSERTA $11.08
Self-Close
Screw-on $3.98
Press-in $3.76
EXPANDO $4.40
INSERTA $5.82
Free-Swing
Press-in $4.70
Minimum reveals increase with door thickness. The following applications show common examples of necessary reveal and door gap for each
door thickness.
The factory setting for the door gap (distance between the door and side panel/frame) is 1.5 mm. For full opening angle without contacting
the side panel or frame, the gap behind the door and the minimum reveal must be adjusted according to the table below.
NOTE: All dimensions based on 1 mm door radius.
Screws - Flathead Phillips
Screw-on hinges
use #6 wood screws
.
See page 207 for angle restriction
clips and hinge cover caps.
