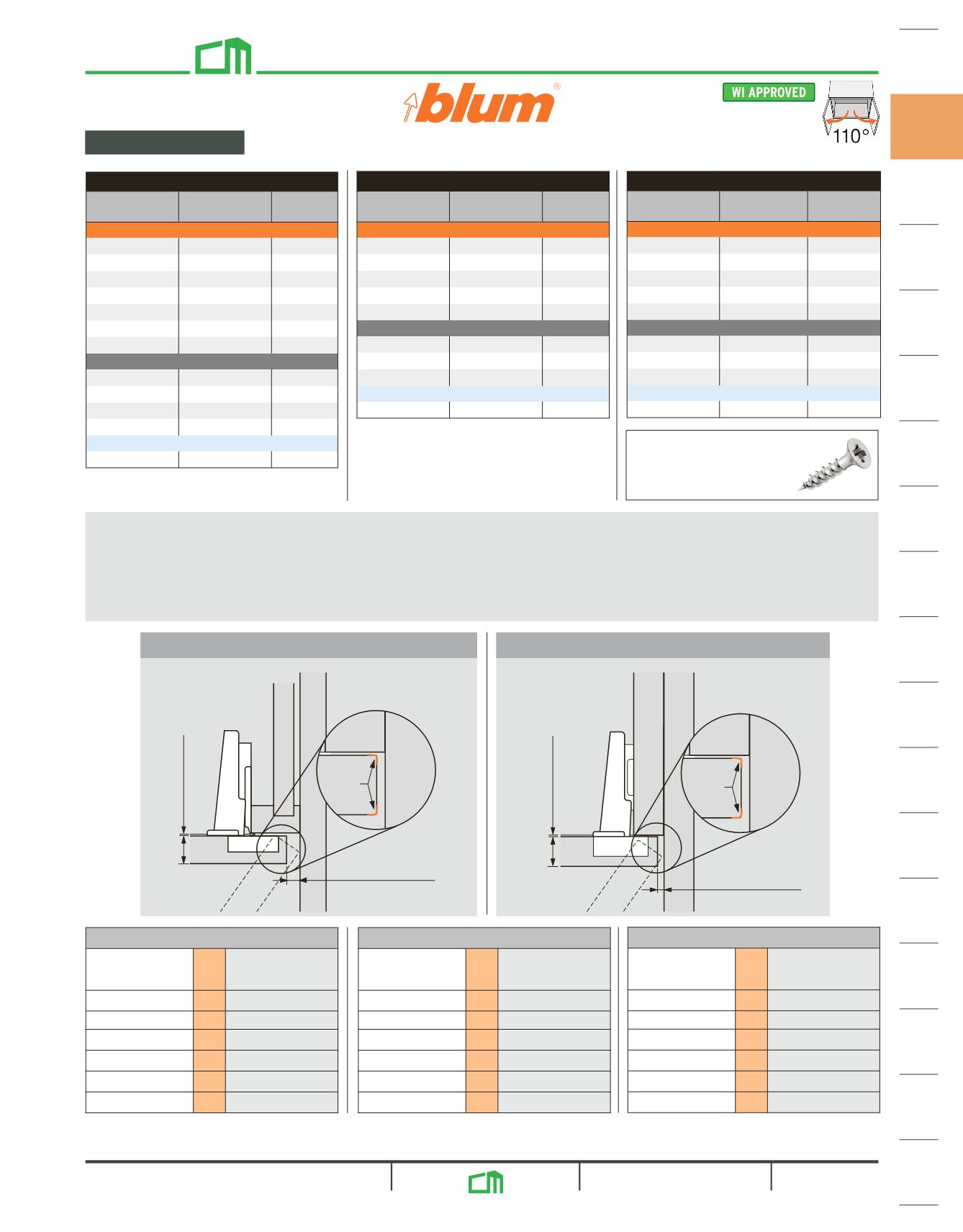

Charles McMurray Co. 2023 Catalog

181 / 1645

7/8" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door
1.8 3 1.5
1.7 4 1.5
1.7 4.5* 1.5
1.7 5 1.5
1.6 6 1.5
1.6 7 1.5
T
Minimum reveal
T
1 rad
(1/32")
Minimum gap Minimum gap
3/4" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door
1.0 3 1.5
1.0 4 1.5
.9 4.5* 1.5
.9 5 1.5
.9 6 1.5
.9 7 1.5
Frameless Application Frame Application
Minimum reveal
T
m reveal
1 rad
(1/32")
Minimum gap
Minimum reveals increase with door thickness. The following applications show common examples of necessary reveal and door gap for
each door thickness.
The factory setting for the door gap (distance between the door and side panel/frame) is 1.5 mm. For full opening angle without contacting
the side panel or frame, the gap behind the door and the minimum reveal must be adjusted according to the table below.
NOTE: All dimensions based on 1 mm door radius.
110° Hinges - Max. Door Thickness 1"
* 4.5 mm bore distance for use with 110°+ hinge
** Factory setting is 1.5, may require adjustment
1" thick door
Minimum
reveal
B
Bore
Minimum gap
behind door**
4.3 3 1.5
3.8 4 1.5
3.6 4.5* 2.0
3.4 5 2.2
3.2 6 3.2
3.0 7 4.2
Overlay Hinges (Straight Arm)
Item No. Description
List Ea.
50
BLUMOTION Soft-Close
Screw-on $8.16
Screw-on $9.32
Press-in $6.86
Press-in $9.44
EXPANDO $7.10
INSERTA $10.06
INSERTA $11.28
Self-Close
Screw-on $4.00
Press-in $3.70
EXPANDO $4.40
INSERTA $5.84
Free-Swing
Press-in $4.62
Inset Hinges (Full-Cranked)
Item No. Description
List Ea.
50
BLUMOTION Soft-Close
Screw-on $9.18
Screw-on $10.24
Press-in $9.46
INSERTA $10.96
INSERTA $12.02
Self-Close
Screw-on $5.10
Press-in $5.14
INSERTA $6.50
Free-Swing
Screw-on $4.84
Partial Overlay Hinges (Half-Cranked)
Item No. Description
List Ea.
50
BLUMOTION Soft-Close
Screw-on $9.06
Screw-on $10.12
Press-in $9.18
INSERTA $10.92
INSERTA $11.98
Self-Close
Screw-on $4.82
Press-in $5.08
INSERTA $6.46
Free-Swing
Screw-on $4.96
Screws - Flathead Phillips
Screw-on hinges use #6 wood
screws .
See page 207 for angle restriction clips
and hinge cover caps.
BK = Onyx Black
DECORATIVE
HARDWARE
CABINET
HINGES
AVENTOS &
LIFTS
LOCKS & CATCHES
DOORS & DRAWERS
SLIDES
LIGHTING ORGANIZERS
KITCH./BATH
SHELF & CLOSET
EDGING & DECOR.WOOD
FURNITURE HARDWARE
ADHESIVES LACQUER &
FINISHES
ABRASIVES
SHOP & FINISHING
FASTENERS
TOOLS
DOOR
HARDWARE
CABINET HINGES
800.533.0533 181 Prices subject to change without notice.
