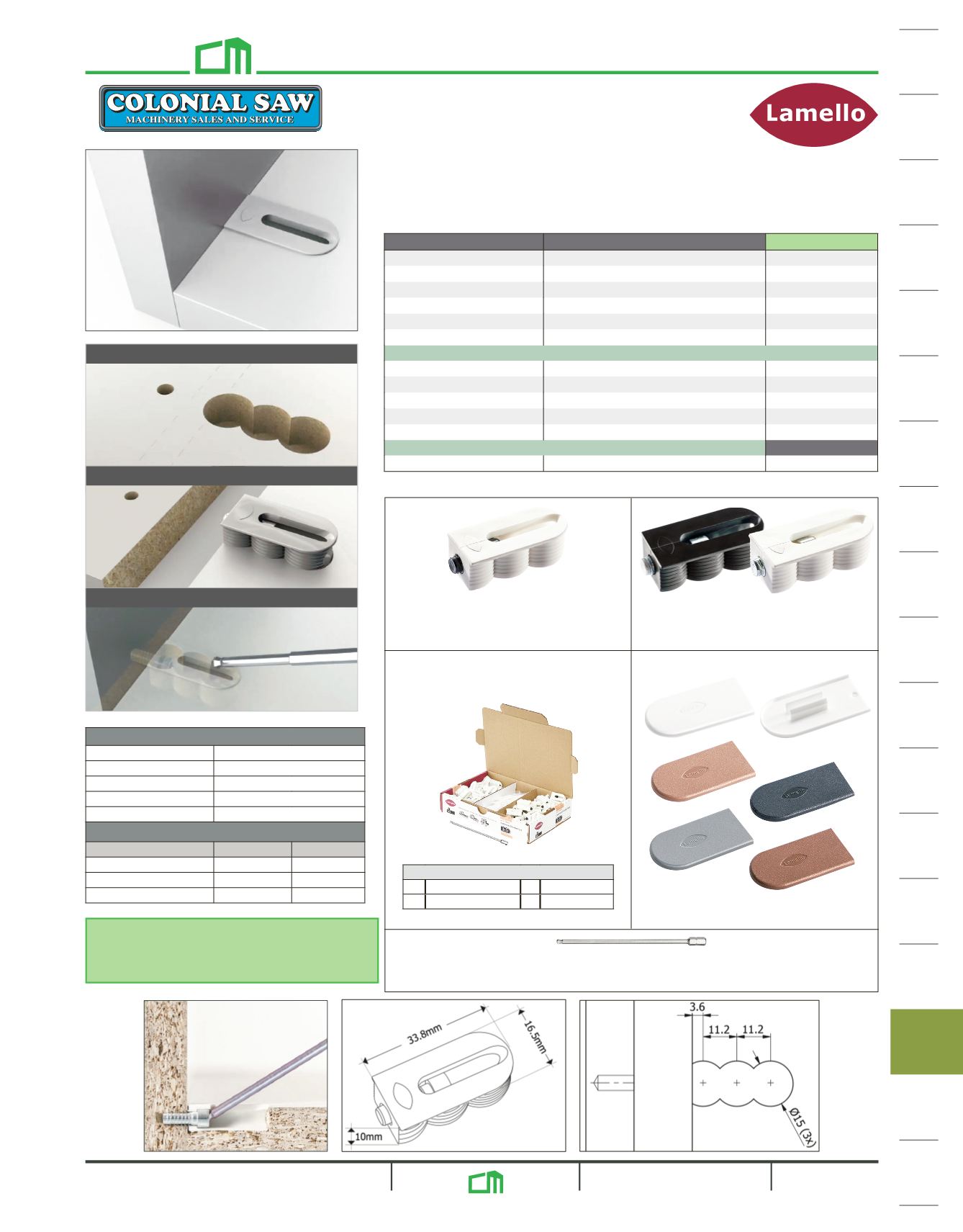

Cabineo CNC Connectors
Item No.
Description
Retail Price
CABINEO-8-WHT-5008 mm Black Screw 500/bx
$225.00 bx
CABINEO-12-BLK-50012 mm Zinc Screw 500/bx
$225.00 bx
CABINEO-12-BLK-200012 mm Zinc Screw 2000/bx
$893.75 bx
CABINEO-12-WHT-50012 mm Zinc Screw 500/bx
$225.00 bx
CABINEO-12-WHT-200012 mm Zinc Screw 2000/bx
$800.00 bx
CABINEO-STARTER-SETStarter Set
$85.00 ea
Covercaps - 100 per box
CABINEO-COVER-BBBrown Beige
$12.50 bx
CABINEO-COVER-BLKBlack
$12.50 bx
CABINEO-COVER-DGDark Gray
$12.50 bx
CABINEO-COVER-FBFawn Brown
$12.50 bx
CABINEO-COVER-WHTWhite
$12.50 bx
Accessories
List Ea.
CABINEO-4MM-DRIVER
Hex Driver Bit - 1/4" 4-3/4"L
$38.38
• Furniture connector without edge drilling
• Efficient machining with all CNC machines
• Faster installation and a higher clamping force
• No need for wooden dowels
• Install the fittings into the workpieces, stack, deliver and assemble
• For panels of 12 mm or more
Technical Data
Size 33.8 x 16.5 x 10.8
Cutter Ø12 mm or smaller
Drill Ø5 mm & Ø15 mm
Material Housing Fiberglass reinforced plastic
Installation Tolerance Longitudinal ±0.1 mm
Technical Values Without Dowels
Particle Board 19 mm Cabineo 12 Cabineo 8
Tensile Strength 200 lbs.
110 lbs.
Shear Strength 190 lbs.
120 lbs.
Clamping Force 200 lbs.
110 lbs.
1. CNC - Surface machining
CABINEO-8Black or white w/8 mm black screw.
For center panel connection.
Box includes driver.
CABINEO-12Black or white w/12 mm zinc screw.
For corner panel connection.
Box includes driver.
Starter Set Includes
40 8mm connectors 40 covercaps
40 12mm connectors 1 hex driver bit
CABINEO-STARTER-SET
CABINEO-4MM-DRIVERHex driver bit
Plastic covercaps.
100 each per box, sold per box.
Retail Prices shown are Colonial Saw retail
prices. Discounts not available on
Colonial Saw retail prices.
2. Insert one-piece connector
3. Align screw with hole and tighten with bit
Brown Beige
(BB)
Black
(BLK)
Dark Gray
(DG)
Fawn Brown
(FB)
White (WHT)
Cover Caps
