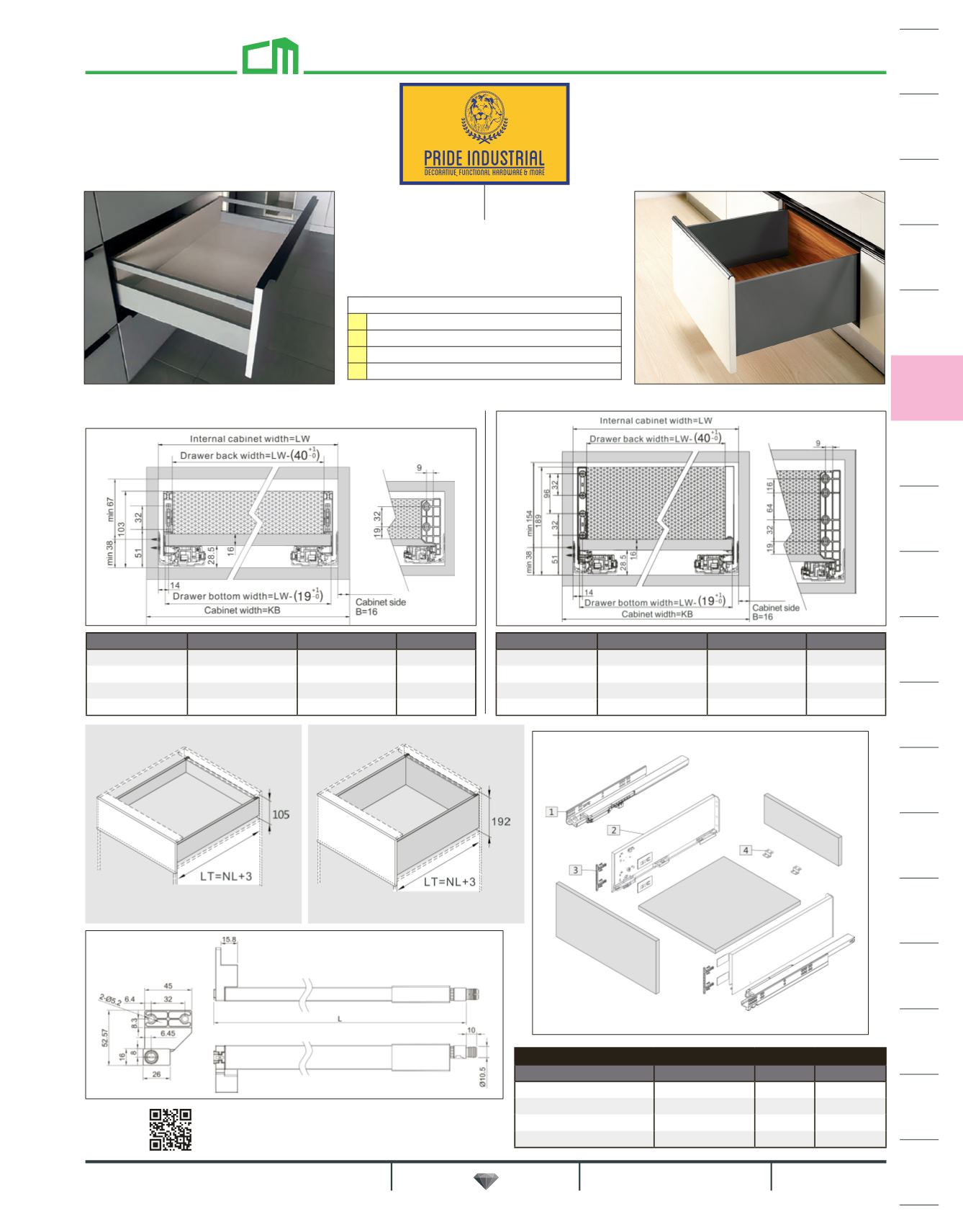

Charles McMurray Co. 2021 Catalog

478a / 1590

Double-Wall Drawer System
88mm (3-3/8") Height
Soft-Closing, 90 lb. Capacity
Double-Wall Drawer System
172mm (6-3/4") Height
Soft-Closing, 90 lb. Capacity
Item No. Length List Set List Set 5
400mm (16") $70.06 $59.38
450mm (18") $72.72 $61.64
500mm (20") $74.70 $63.30
550mm (22") $80.18 $67.94
Item No. Length List Set List Set 5
400mm (16") $82.88 $70.24
450mm (18") $83.88 $71.10
500mm (20") $85.30 $72.28
550mm (22") $94.12 $79.76
Optional Siderails for MCDW Drawer System
Item No. Length List Set List Set 5
400mm (16") $10.90 $9.24
450mm (18") $11.80 $10.00
500mm (20") $14.20 $12.04
550mm (22") $12.70 $10.76
• Gray matte steel walls
• Concealed, full extension slides
• 2-D front panel adjustment
• Tool-free assembly & removal of drawer
Drawer System Includes
1 Under Mount Drawer Slides (1 ea. L/R)
2 Drawer Sides & Cover Caps (1 ea. L/R)
3 Front fixing brackets (1 ea. L/R)
4 Rear fixing brackets (2)
Shown with siderails installed -- not included with drawer system.
Optional/purchased separately.
2/22
MCDW-SIDERAIL Dimensions
(Optional/purchased separately)
Space Requirement
MCDW88
LW=Internal cabinet width
NL=Nominal slide length
Drawer
back height
= 63mm
LW=Internal cabinet width
NL=Nominal slide length
Space Requirement
MCDW172
Drawer
back height
= 101mm
