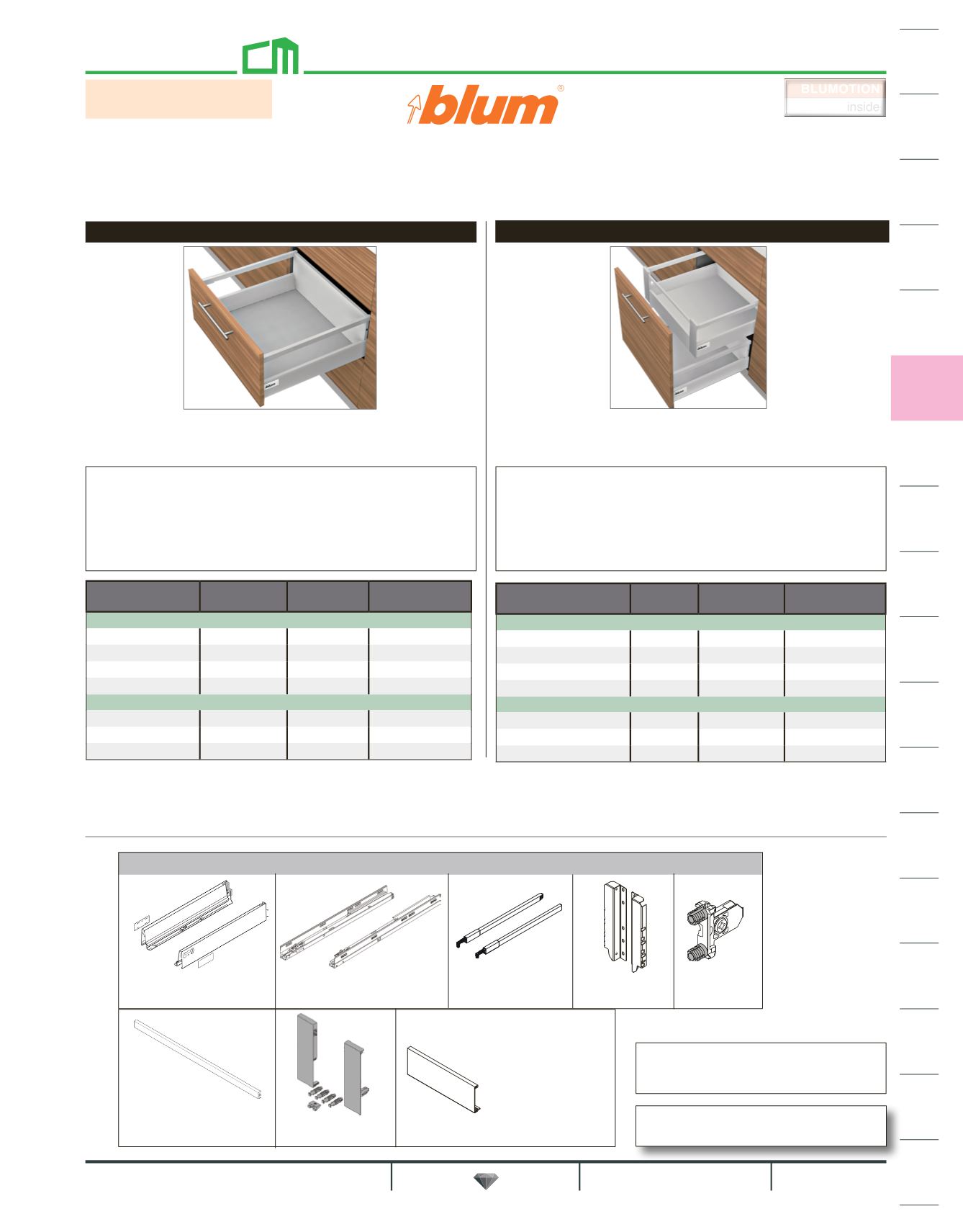

Charles McMurray Co. 2021 Catalog

463 / 1590

Components
TANDEMBOX - D Height (8-1/8") w/Single Gallery - Gray Finish
Dynamic Weight Capacities of 75 lbs. and 150 lbs.
Sold per kit (components are also available individually).
Each kit includes:
1 pair Drawer Profiles 1 pair Top Gallery Rails
1 pair Cabinet Profiles 1 pair Rear Fixing Brackets
2 each INSERTA Front Fixing Brackets
Drawer Height: 207mm (8-1/8").
MinimumOpeningHeight: 228 (8-15/16") based on 3mm(1/8") clearance.
Minimum depth = actual profile length +3mm (1/8").
Front
Fixing Bracket
B378M
Drawer Profile Set
B578/576
Cabinet Profile Set BZRG Top Gallery Rails
BZ30D Rear Fixing
Bracket Set
Cross Gallery Rail 42"
Interior Rollout Drawers Standard Drawers
Kit No.
Nominal
Length
Actual
Length List Per Kit
75 lb. Capacity
TB-D-400G 16" 15-3/4" $153.94
TB-D-450G 18" 17-11/16" $155.12
TB-D-500G 20" 19-11/16" $160.18
TB-D-550G 22" 21-5/8" $163.68
150 lb. Capacity
TB-D-450G150 18" 17-11/16" $181.20
TB-D-500G150 20" 19-11/16" $185.36
TB-D-550G150 22" 21-5/8" $189.86
Sold per kit (components are also available individually).
Each kit includes:
1 pair Drawer Profiles 1 each Cross Rail
1 pair Cabinet Profiles 1 pair Top Gallery Rails
1 pair Rear Fixing Brackets 1 pair Interior Front Brackets
Front piece must be ordered separately (BZ31L1036).
BZ31L1036A
Front Piece
Required for interior rollout.
Not included in kit.
Order separately.
1036mm (40-13/16") (cut to size)
L=inside cabinet width minus 132 (5-3/16")
Kit No.
Nominal
Length
Actual
Length List Per Kit
75 lb. Capacity
TB-D-400G-INT 16" 15-3/4" $196.32
TB-D-450G-INT 18" 17-11/16" $197.50
TB-D-500G-INT 20" 19-11/16" $202.56
TB-D-550G-INT 22" 21-5/8" $206.06
150 lb. Capacity
TB-D-450G-INT150 18" 17-11/16" $223.58
TB-D-500G-INT150 20" 19-11/16" $227.74
TB-D-550G-INT150 22" 21-5/8" $232.24
Front Fixing Brackets
Drawer Height: 207mm (8-1/8").
MinimumOpeningHeight: 228 (8-15/16") based on 3mm(1/8") clearance.
Minimum depth = actual profile length +3mm (1/8").
Cut-to-size
L=opening width
minus 122 (4-13/16")
Recommended Fasteners
Slides: #7x5/8" flathead (MCFPT587)
Rear Brackets: #6 x 1/2" trusshead
For a complete list of components
see catalog pages 464-465.
NOTE: Some sizes require a lead-time.
Complete specifications are
available at
