Charles McMurray Co. 2021 Catalog

264 / 1590

• Satin Chrome finish
• Supplied with steel flat-head screws
• Maximum Door Thickness: 53/64"
• Maximum Door Size: 27-9/16"H × 17-23/32"W
Sold per each.
Item No.
(L)
Height
(B)
Width Box List Ea.
List Ea.
Full Box
2-3/8" 1-35/64" 10 $33.14 $27.82

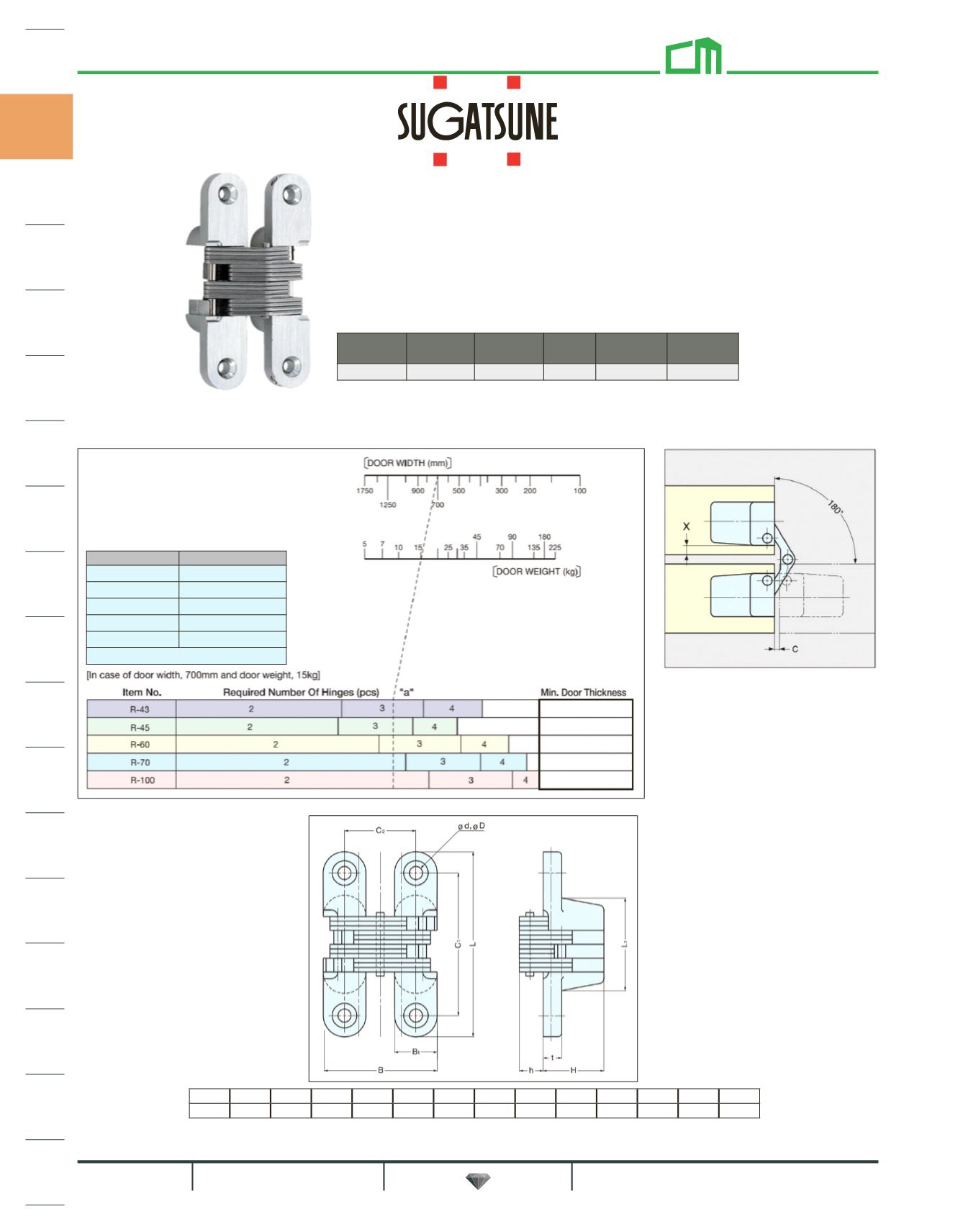

R Series Concealed Hinges
Distance between door edge and hinge
must be less than the figures shown
in column "X" of the dimension table
below.
To determine the number of hinges required for each door:
No. L L1 B B1 C1 C2 H h t D d C X
60 33 35.2 13 47 22.2 18.5 6.5 6.5 8.3 4.3 1 3
13 mm
19 mm
19 mm
25 mm
29 mm
Using the chart to the right, locate the correct door
width (upper scale) and door weight (lower scale).
Draw a line connecting these 2 points to the chart
below (point "a"). Then drawer a vertical line through
the lower chart to find the number and type of hinges
required.
Check door thickness requirements.
Item No. # of Hinges
R-43* 3
R-34* 3
3
2
2
*Special Order
