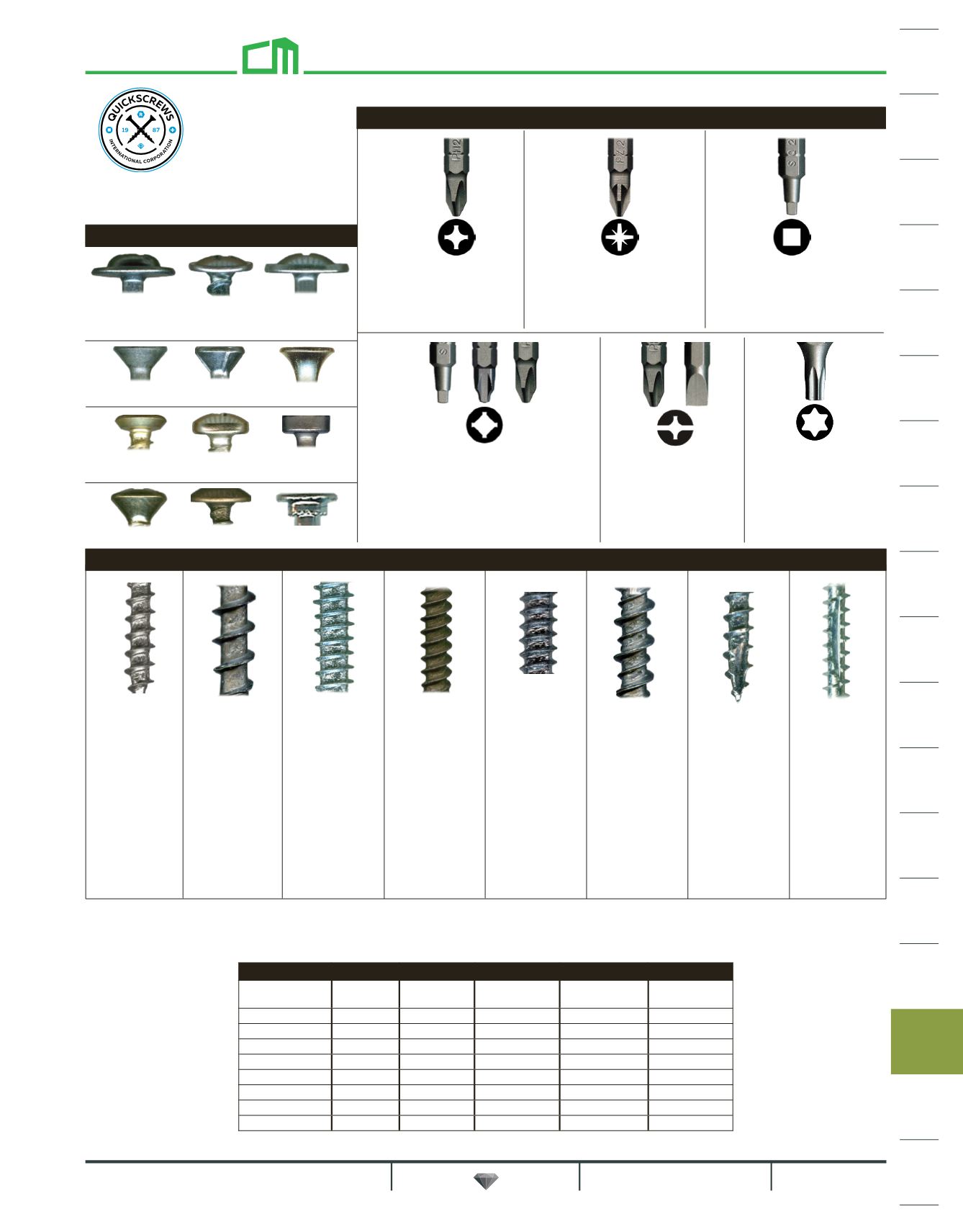

Quickscrews
Thread
(Coarse)
Extra Coarse
Thread
Fine
Thread
Twinfast
Thread
Sheet Metal
Thread
Hi-Lo
Thread
QuickScrew®
Thread
w/Type 17
Auger Point
QuickCutter™
Double Auger
21-23° point de-
signed for particle-
board, but works
well in all types
of wood. Wide
threads provide
greater holding
power.
Extra wide thread
for greater holding
power in pine and
other soft, porous
woods. Available on
Round Washer Head
FramingScrews™.
Designed for hard-
woods such as oak
and maple. Available
on FramingScrews™
Also known as twin
lead. 21-23° point
is typically used for
hinge attachment in
hardwoods.
30-45° point with
thread designed
specifically for use
in sheet metal ap-
plications.
The "All-Purpose"
screw. Hi-Lo thread
for greater holding
power and less strip-
out in all woods.
Available on Fram-
ingScrews™.
Type 17 (21-23°
point) allows screw
to be driven into
most woods with-
out a pilot hole.
Wide threads pro-
vide greater holding
power. Less torque
required to drive
screws.
Patented Double
Auger and 21-23°
point allows screw
to be driven into
even the hardest
woods without a
pilot hole. Wide
threads provide
greater holding
power. Less torque
required to drive
screws.
Heads
Points and Threads
Drives
Square Drive
Provides better engage-
ment and reduction of bit
"cam-out" while driving.
Phillips/Slotted
Drive
Combination drive
found primarily on truss
head machine screws.
Phillips Drive
The most common drive for
wood application fasteners.
Pozi Drive
Designed to provide higher
torque in hand driving ap-
plications.
Combination
Phillips/Square Drive
Designed to be drivenwith a square drive
bit to provide better engagement and
reduction of bit "cam-out" while driving.
A Phillips bit is acceptable for removal.
Undercut
Flat
Flat w/Nibs
Bugle
Pan
Modified
Pan
Truss
Round
Washer
Low Profile
Round
Washer
Large
Round
Washer
Oval
Size Specifications
Nominal or
Screw Diam.
Threads
Per Inch
Major
Diameter
Minor
Diameter
Length
Range
Min. Torque
#5 .125
14
.128/.122 .0780/.0720 3/8" - 1"
18 lbs./inch
#6 .138
13
.141/.135 .0787/.0870 3/8" - 1-1/2" 18 lbs./inch
#7 .151
12
.154/.148 .0874/.0960 1/2" - 2"
22 lbs./inch
#8 .164
11
.168/.161 .0937/.1028 1/2" - 3"
28 lbs./inch
#9 .177
10
.181/.174 .0984/.1098
1" - 4"
32 lbs./inch
#10 .190
9
.194/.187 .1098/.1189 5/8" - 6"
39 lbs./inch
#12 .216
8
.230/.225 .1695/.1685 5/8" - 1-3/4" 65 lbs./inch
#14 .250
7
.245/.235 .1750/.1650 2-1/2" - 4" 100 lbs./inch
Funnel
Torx Drive
Allows the user a 6°
angle when driving the
screw and the bit will
still engage and drive
the fastener.
