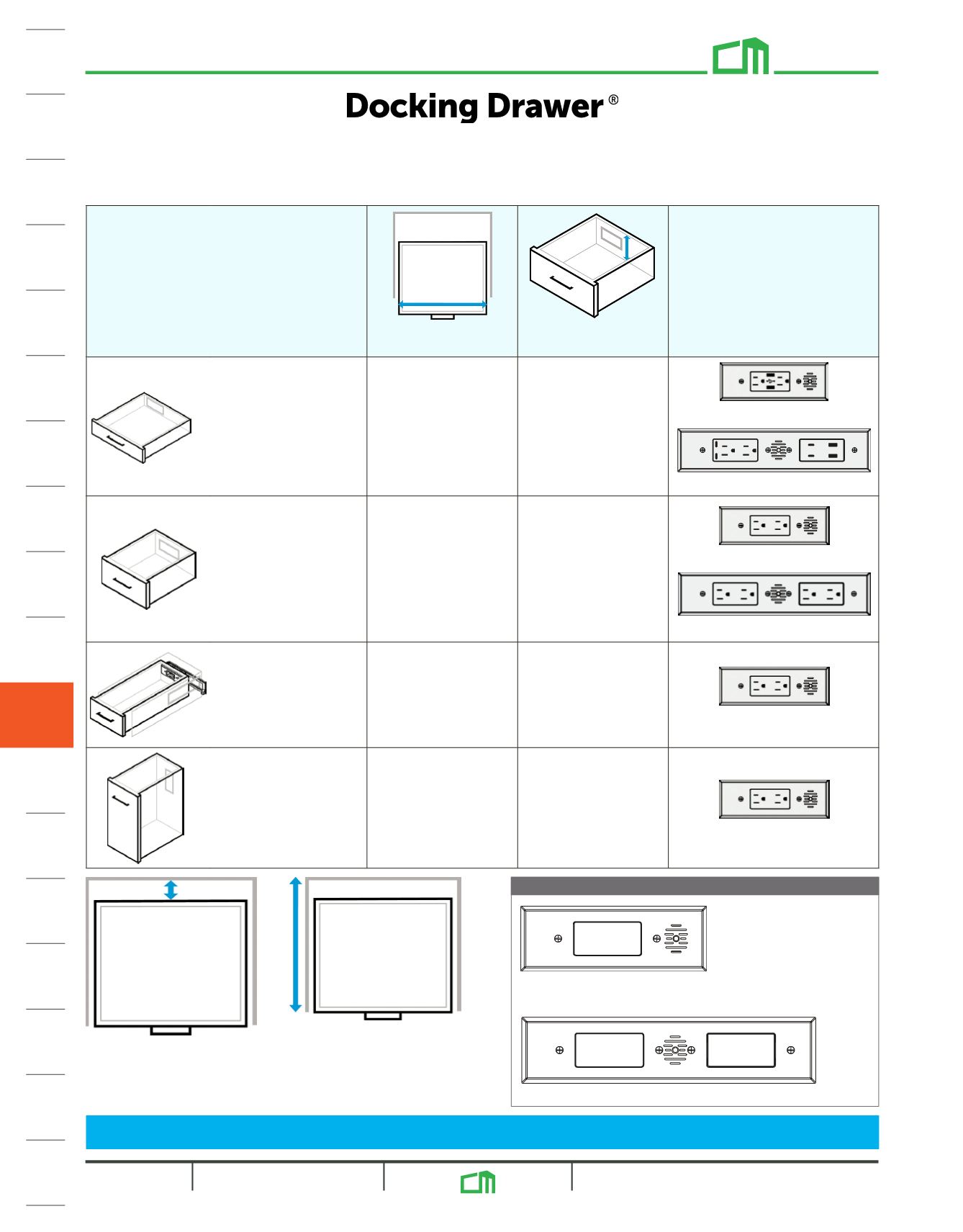

Drawer Type
Min. Drawer Box
Width (OD)
Min. Interior
Drawer Box Height
Most Popular Outlets
for this Drawer Type
Shallow Drawer
Most often found in kitch-
ens, closets, offices, side
tables, entryway tables
and retail projects.
15"
3"
DD1514-110
DD1514-278
Tall Drawer
Most often found in bath-
room vanities and with
above-glide mounting.
13"
4"
DD1514-160
DD1514-266
Narrow Drawer
Most often found in bath-
roomvanities and drawers
as narrow as 9" with over-
glide mounting. Requires
a channel to be cut in the
cabinet sidewall.
9"
4"
DD1514-160
Vertical Drawer
Most often found in bath-
room vanities and kitchen
pull-outs. Blade Series
outlets can be rotated for
vertical installation.
8"
13"
DD1514-160
Blade™ DD1514-110
DD1514-160
Blade Duo™ DD1514-232
DD1514-266
DD1514-278
DD1514-288
Cover Plate Dimensions
Blade™ Series In-Drawer Outlets
Start by Selecting Your Drawer Type
Maximum
Base Cabinet
Depth
24"
Minimum
Space Behind
Drawer Box
2"
For more information and installation instructions go to:
dockingdrawer.com/downloads7-3/16"W (182 mm) x 2-1/2"H (64 mm)
