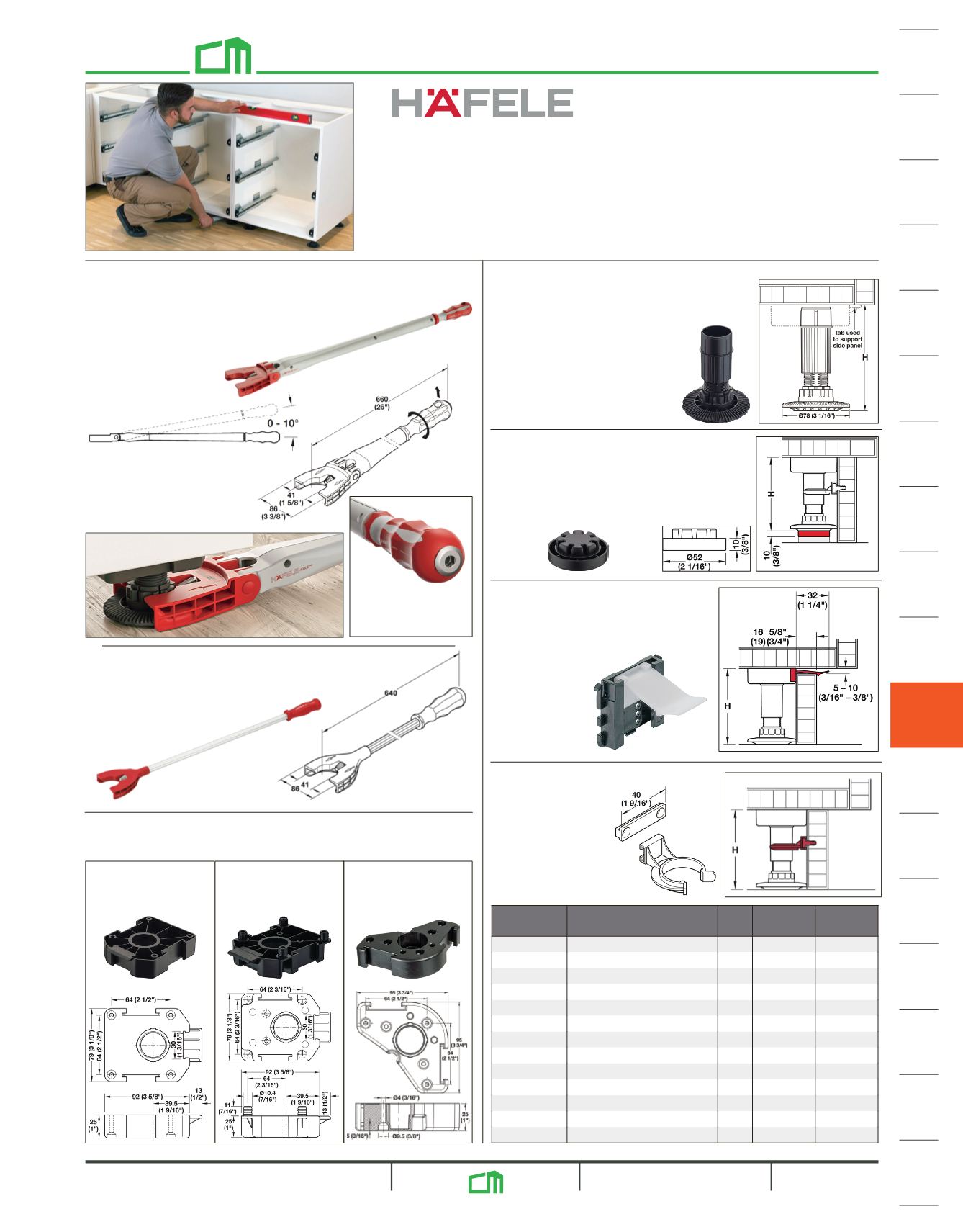

AXILO™ Plinth Adjusting Fitting System
• Serves as an arm extension
• Ergonomic installation for protection of the back
• Flexible, time-saving installation
• Easily adjusted by hand or with tool
• Large area of application from plinth height 2-1/16" to 8-21/32"
• Exact adjustment provided by the fine thread
Handle end has 1/4"
chuck and can be
turned by hand or
with a tool.
Mounting Plates - Screw-mounted black plastic
(use #6 x 1-1/2" flat head screws.)
Adjustment Feet - Black Plastic
• Plug fits into mounting plate
• Load rating: 330 lbs./ft.
• Adjustable at the side and from
above 3/8" to 13/16" using AXILO
adjusting tool
2" to 3-1/8"
2-3/4" to 4"
3-1/2" to 4-3/4"
4-1/2" to 5-11/16"
5-1/2" to 6-11/16"
Plinth Holder
• For 3/4" panel thickness
• For mounting the plinth panel
• Plug fits into mounting plate
• Plastic
Plinth Clip
• Screw mounted
• For use from
installation height
H = 3-1/8"
• Plastic
Height Adjusting Tools
Adjustable Angle Height Tool
• For adjustment of AXILO 78 plinth system
• 1/4" chuck, includes 1/4" bit
• Adjustment angle height: 1-10°
Item No. Description Box List Ea.
List Ea.
20
Plinth Clip 20 $2.22 $1.86
Plinth Holder for 3/4" 20 $4.88 $4.06
Mounting Plate w/Dowels 20 $3.54 $2.96
Mounting Plate 20 $3.08 $2.56
Corner Mounting Plate 20 $3.40 $2.84
Foot 2" to 3-1/8" 20 $4.66 $3.88
Foot 2-3/4" to 4" 20 $4.70 $3.92
Foot 3-1/2" to 4-3/4" 20 $4.52 $3.76
Foot 4-1/2" to 5-11/16" 20 $5.56 $4.62
Foot 5-1/2" to 6-11/16" 20 $5.38 $4.48
Adjusting Tool-Adjustable 1 $260.08 ---
Cabinet Foot Spacer 20 $3.64 $3.10
Adjusting Tool-Light 1 $68.88 ---
Plinth height =
H - 5-10 mm
(3/16" - 3/8")
Light Tool
• For height adjustment of the plinth foot
• Manual operation
• Fixed tool length
Cabinet Foot Spacer
• Plugs into bottom of existing foot to add height
• Can be stacked
• Black plastic
Corner Plate Rectangular Plate Rectangular Plate
w/Dowels
