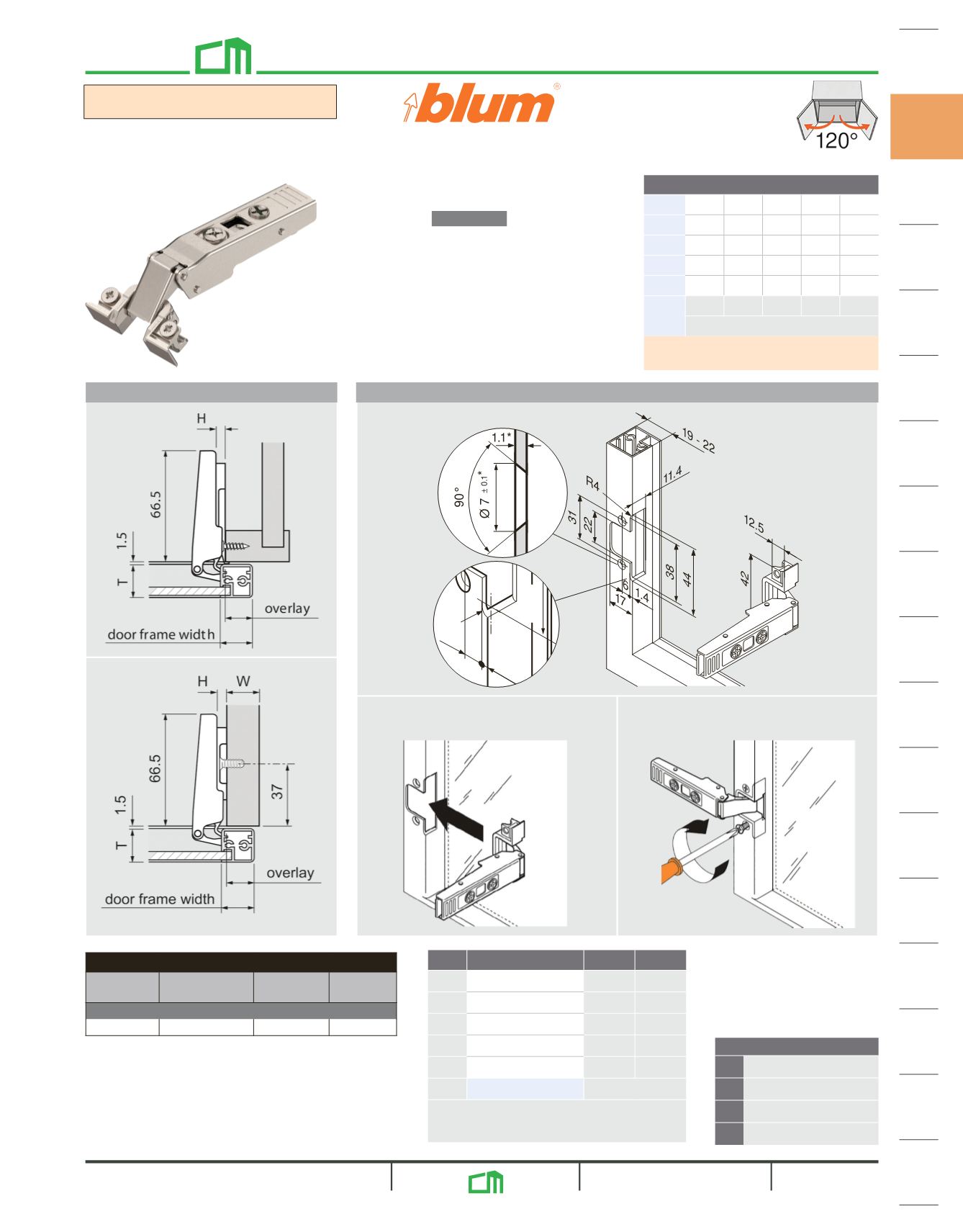

120° Hinge for Narrow Aluminum Doors
Max. Door Thickness 7/8"
1.4
6
38
R4
Overlay Door
Specifications
Overlay Hinges (Straight Arm)
Item No. Description List Ea.
List Ea.
50
Self-Close
B73T550AScrew-on
$10.76 $9.06
H
Overlay
P
S
0
15
8
19.5
3
12
11
22.5
4.5
10.5
12.5
24
6
9
14
25.5
9
6
17
28.5
Fixed boring distance
NOTE:
4.5 plate is only for use in frame cabinets,
9 plate is only for frameless cabinets
Frame
Frameless
Order hinges & baseplates separately.
See pages 202-206 for baseplate options.
Features
• Available in
Self-Close
• Three-dimensional adjustment
• NOT for use with BLUMOTION 973A
Abbreviations
H
= Plate height
P
= Door protrusion
S
= Side arm protrusion
W
= Side panel width
Minimum Reveal Table
18 1.5 1.9 2.4 2.9 3.7
19 1.5 1.8 2.2 2.7 3.3
20 1.4 1.8 2.2 2.6 3.1
21 1.4 1.7 2.1 2.5 3.0
22 1.3 1.7
2
2.4 2.9
Door
frame
width
18 19 20
21 22
T = door thickness
For door thickness greater than
22 mm a trial is recommended.
Insert hinge into machined opening
Attach with aluminum screws provided
with hinge (699.110)
