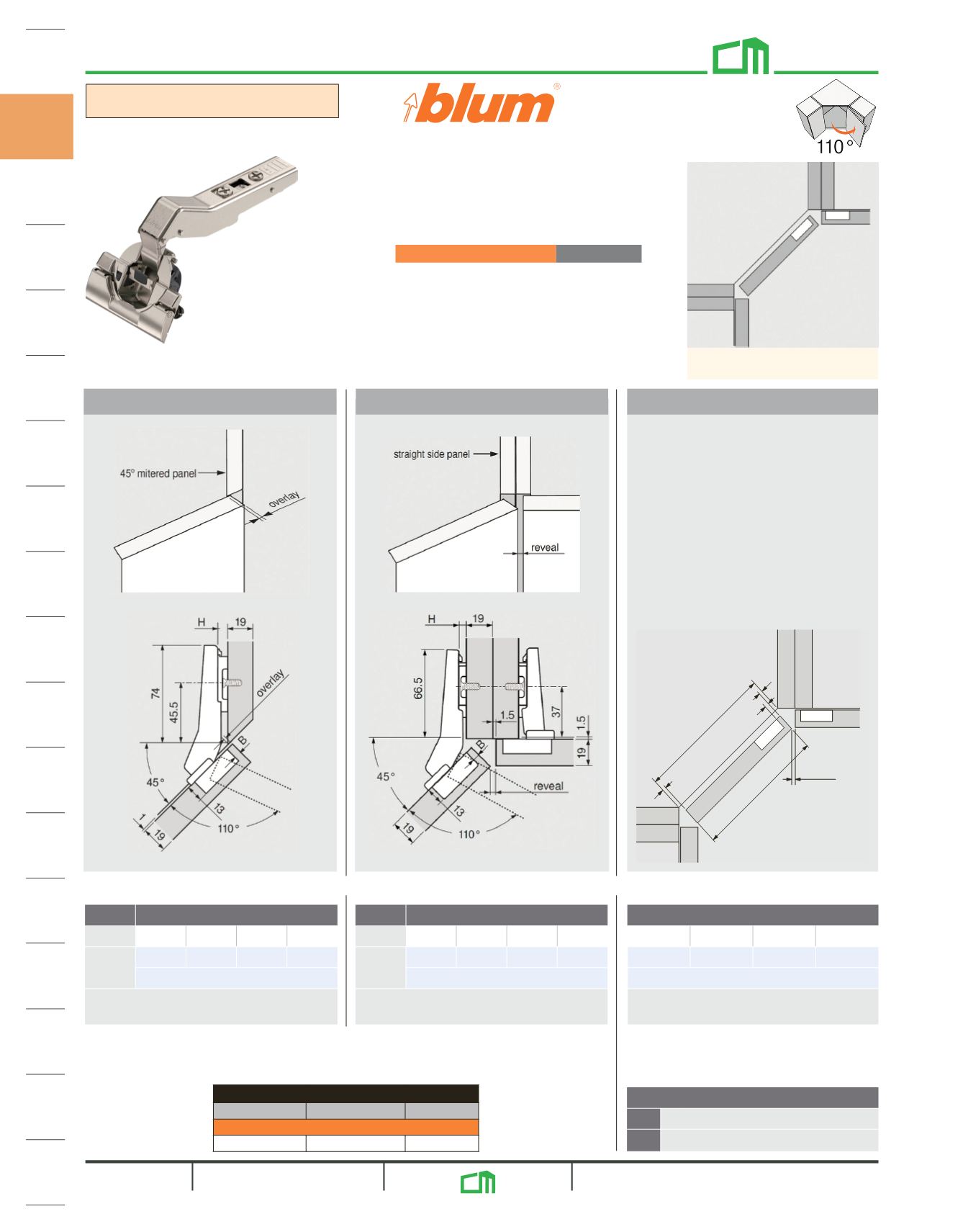

Calculating Door Width
110° Hinges - 45° Diagonal
Max. Door Thickness 3/4"
Hinges
Item No.
Description List Ea. 50
BLUMOTION Soft-Close
B79B3598INSERTA $13.78
For door thickness greater than
19 mm a trial is recommended.
Inside Corner
Overlay Application
Step 1.
Using the boring distance (B) deter-
mined in the reveal table, cross reference to
find the side gap distance (Y) in the table below.
Step 2.
Use the following formula to find the
door width. Door width = interior width minus
(Y x 2).
Example:
interior width = 400 mm,
side gap (Y) = 4.5 mm.
391 = 400 minus (4.5 x 2)
*
All 35 mm and 8 mm holes must be a minimum of 13 mm deep
B
Y
interior width
door width
Y
reveal
H
Overlay
0
1
2
3
4
3
4
5
6
B = boring distance
H
Reveal
0
6
5
4
3
3
4
5
6
B = boring distance
NOTE:
Reveal based on
19
(3/4") side panel
Y = side gap
5.5
4.5
3.5
2.5
3
4
5
6
B = boring distance
NOTE:
Calculations based on
19
(3/4")
door thickness
Abbreviations
H
= Plate height
Y
= Side gap
Order hinges & baseplates separately.
See pages 202-206 for baseplate options.
*
*
Features
• Available in
BLUMOTION Soft-Close Self-Close
• Deactivation switch for small/light doors
