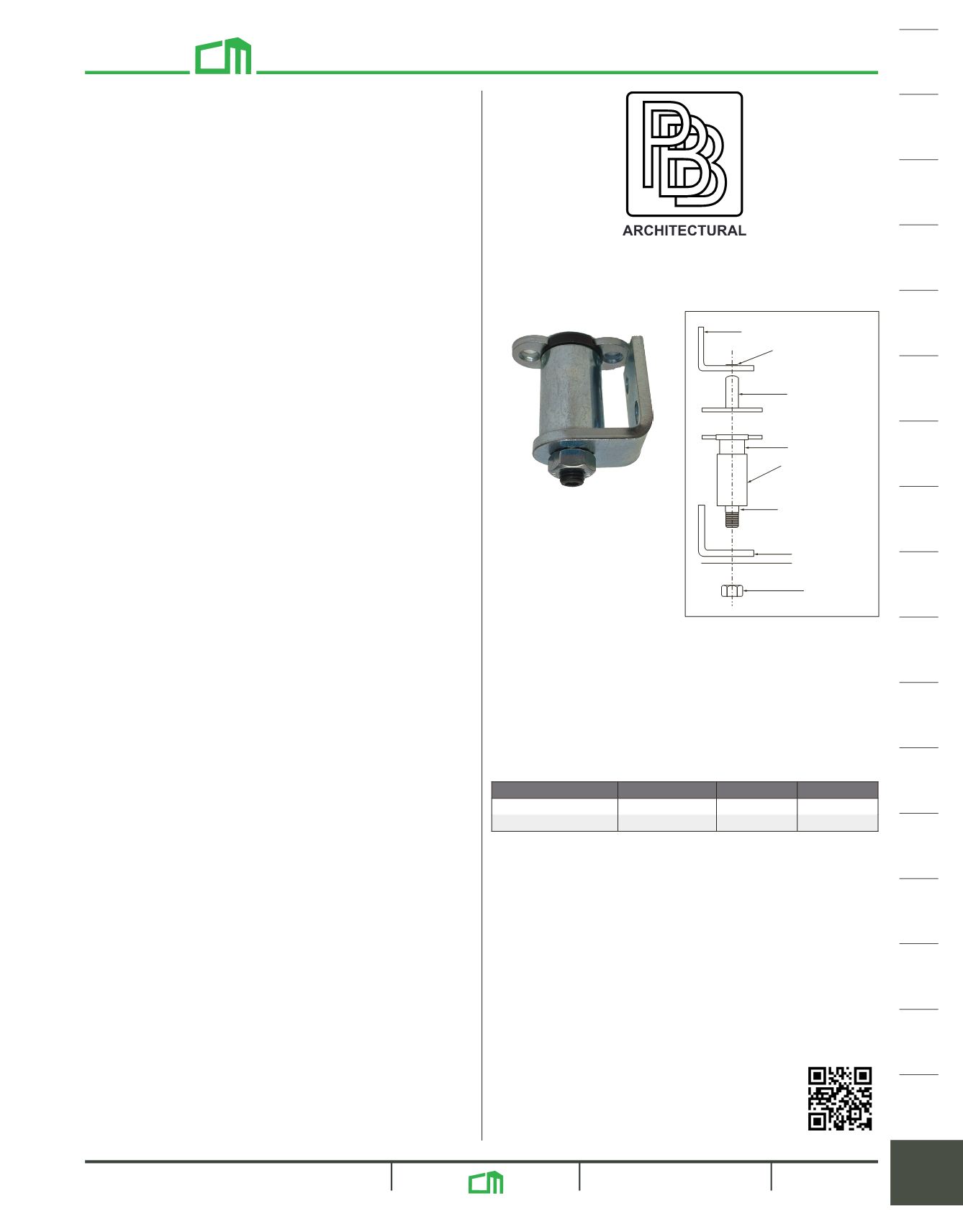

Double Acting Gravity Pivot Hinge
Full Surface, Self-Closing
• Zinc-plated steel (US2G)
• Double-acting louver door hinge capable of opening 180°
in both directions
• Hold open feature at approx. 90°, push to release
• For door thickness 7/8" to 1-5/8"
• Maximum door width 30"
• Load rating 50 lbs. maximum
Top Bracket
Nylon Bushing
Top Pivot
Bottom Pivot
Cylinder Cam
Square Drive
Bottom Bracket
w/ Star Hole
Nut
Required screws: (8) #10x1" FH wood screws, (8) 10-24x1/2"
FH metal screws (4 ea. for top and bottom pivot assembly, 4 ea.
for top and bottom bracket.) Sold per each. Screws not included.
Item No. Description List Ea. List Ea. 4
Standard $75.75 $63.79
Hold-open $94.69 $79.74
NOTE: Pivot edge of door
must be rounded to 78"
radius from pivot center
line to clear jamb.
For installation instructions
visit:
