• Long arm for a wider throw, allowing 3/8" clearance for flush installation
or 1/2" clearance for installation with a moulding
• Opens to 180°
• 3-way adjustment allows vertical, horizontal, and depth adjustment
• Flanges come apart for the door to be provisionally hung for making adjustments
• Covers hide screw heads for a clean appearance
• Min. Door Thickness: 1-5/8"
• Max. Door Size: 96-1/16"H × 36"W
• Max. Door weight: 220 lbs./2 pcs., 275 lbs./3 pcs.
• Black or dull nickel finish
• 7-1/2"H x 3-11/16"W

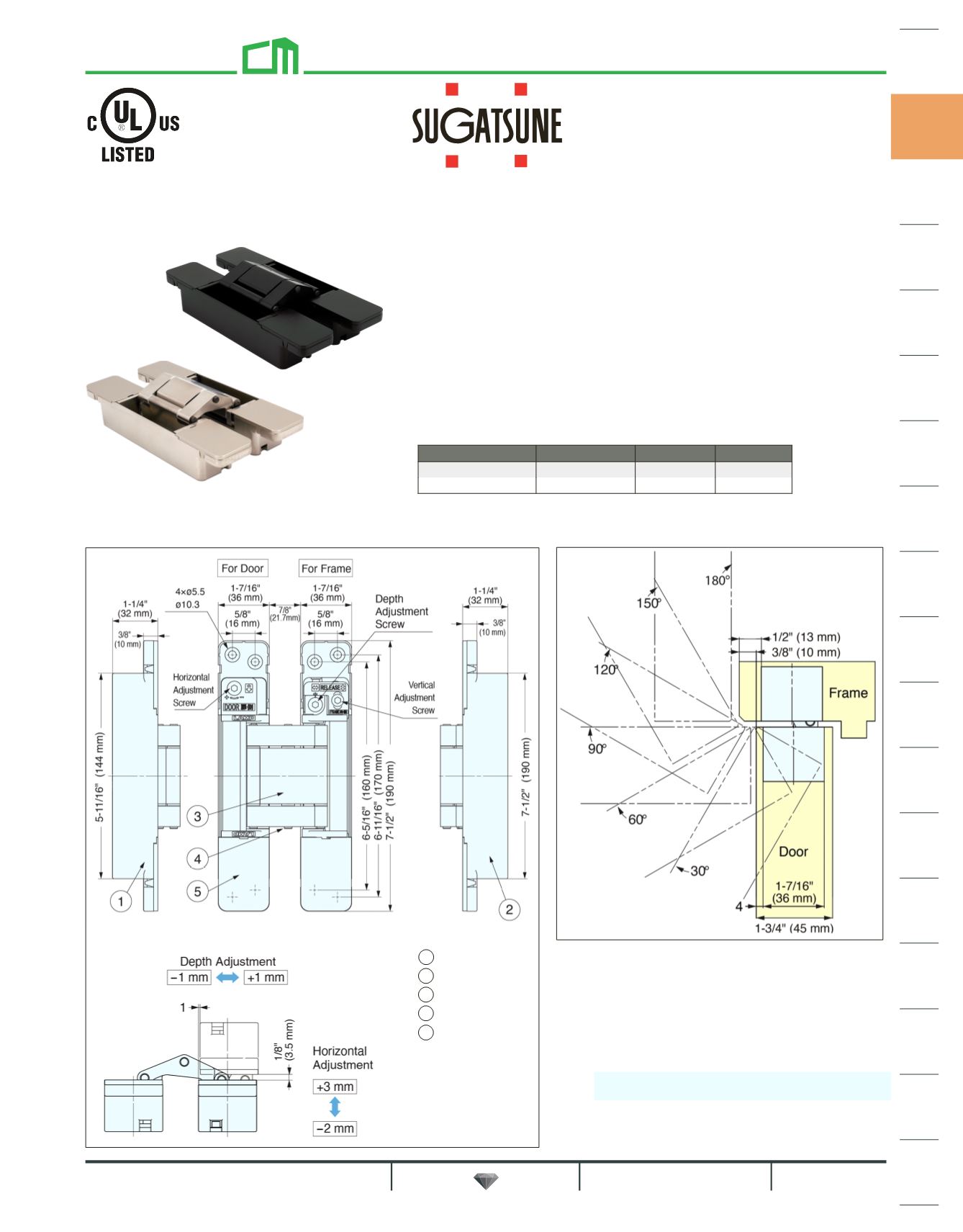

HES3D-W190 Series
3-Way Adjustable Concealed Hinge for Door Mouldings
2 each per box with steel flat head screws. Sold per each.
Item No. Finish List Ea. List Ea. 6
Matte Black $272.92 $231.28
Dull Nickel $272.92 $231.28
1 Body
2 Base Frame
3 Arm
4 Shaft
5 Screw Cover
